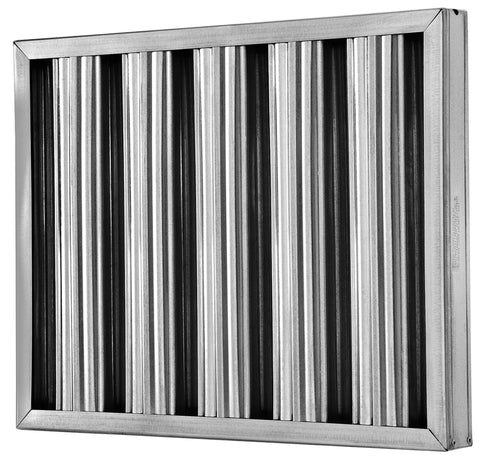

Fire Guard "G"

Type

"THE RUGGED" GREASE FILTER*
LESS VIBRATION - MORE STRENGTH!

FIRE GUARD "G" is manufactured with heavy 24 gauge Galvanized steel through out, including the baffles themselves. Two layers of baffles are carefully aligned to eliminate the direct passage of flame and grease through the filters. The heavy gauge makes all the difference when it comes to a superior baffle filter. Secured in place, the baffle pad will not shift or bend when being handled. Because of the extra weight, the filter won't vibrate when installed. Grease-laden air is forced to swirl, preventing accumulation of grease on the baffles. Drain holes along the bottom of the filter allow rapid runoff into the drain trough.

Maximum temperature is
450 degrees F.

MANY HOURS OF DEVELOPING AND TESTING WENT IN TO THE "FIRE GUARD". DESIGNED WITH THE HOOD SERVICING COMPANIES IN MIND. THESE FILTERS ARE MADE TO HOLD UP THROUGH THE TOUGHEST CONDITIONS.
